SCM Solar Integrated Roof – Shake Tile Design (Pre-Order)

The first integrated solar roof system in the Philippines, exclusively distributed by SCM Roofing Inc.

The Shake Tile Design offers a natural wood-inspired appearance while delivering advanced solar energy performance. This system combines roofing and solar technology into one seamless solution — the roof itself generates electricity.

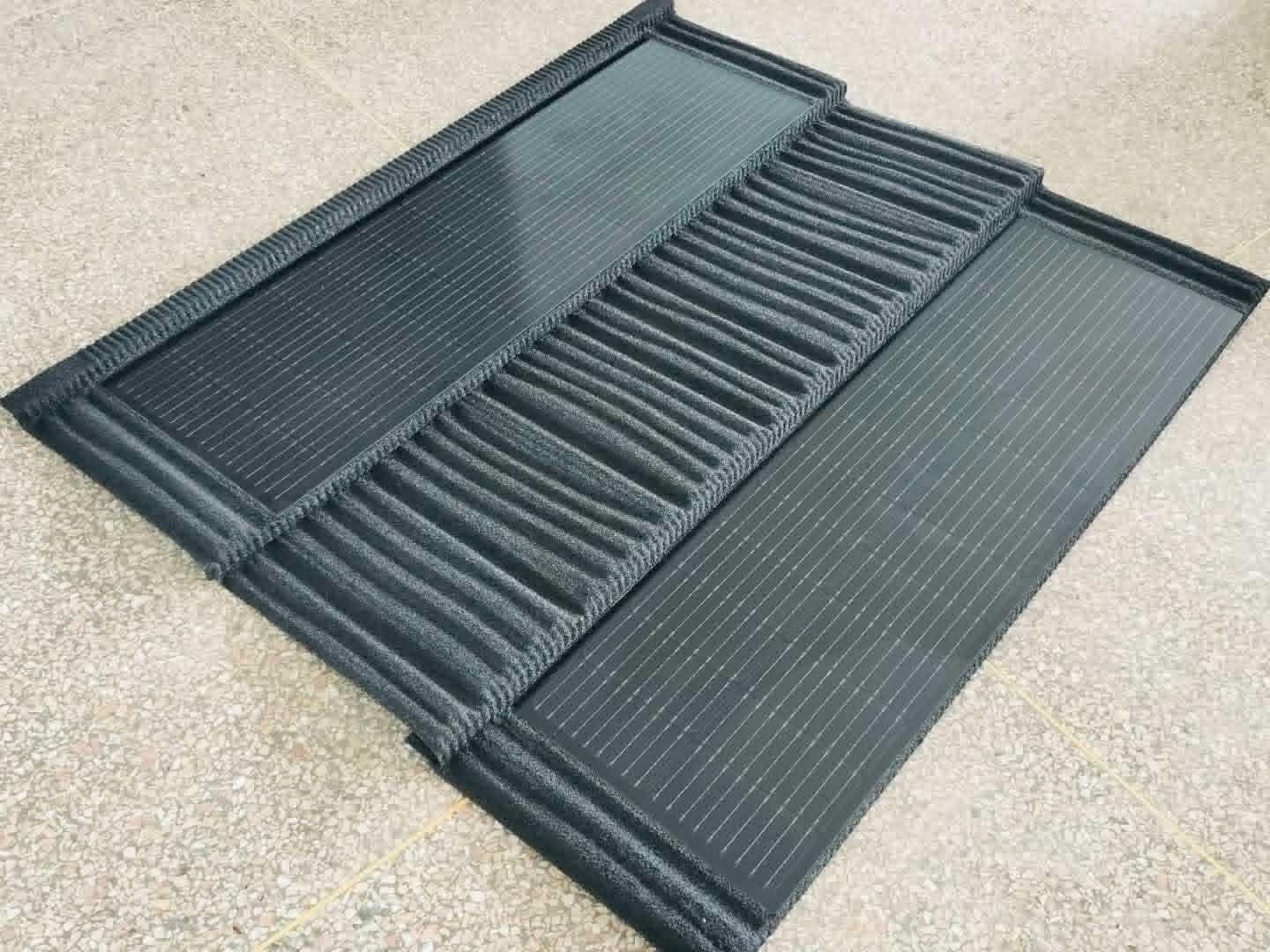

🔹 Design: Shake Tile

🔹 Key Features:
– Integrated solar roof (BIPV technology)
– Natural wood-like aesthetic with modern functionality
– No bulky solar panels or mounting systems
– Strong weather resistance and durable construction
– 30 years product warranty

🔹 Technology:
Powered by TOPCon monocrystalline solar cells, providing high efficiency and stable long-term performance.

Built using BIPV (Building Integrated Photovoltaics), meaning the solar system is directly integrated into the roofing material — offering a cleaner design and better wind resistance compared to traditional solar panels.

🔹 Protection & Durability:
Solar cells are protected by tempered glass and EVA (Ethylene Vinyl Acetate) layers, preventing moisture intrusion and extending product lifespan.

The roofing system is designed with airflow underneath the tiles to reduce heat buildup and minimize the risk of overheating or hot spots.

🔹 Specifications:
– Dimension: 1340mm x 420mm
– Effective Size: 1260mm x 370mm
– Weight: 6.5 kg
– Output Power: 80W
– Junction Box: IP67
– Cable Type: 900mm / 4mm²
– Glass: Tempered Glass (3.2mm + Backsheet)
– Connector: MC4

🔹 Warranty & Performance:
– Up to 30 years product warranty
– First 10 years: ≤10% power loss
– 20 years: ≤15% power loss
– 25 years: ≤20% power loss

📦 Availability: MADE-TO-ORDER (PRE-ORDER)
