SCM SOLAR INTEGRATED ROOF – BIPV
Your Roof. Your Solar. Your Power.
A premium stone-coated metal roofing system with integrated solar technology- design to provide both roof protection and solar power in one integrated solution.
Generate Clean Energy
Durable & Weather Resistant
Seamless Integration
Low Maintenance
Elegant Appearance
A Greener Tomorrow
YEARS PRODUCT LIFE
0
+
SCM SOLAR INTEGRATED ROOF – BIPV
WHAT IS SOLAR INTEGRATED ROOF?
SCM Solar Integrated Roof -BIPV combines photovoltaic technology with a stone-coated metal roofing system, allowing the solar-generating surface to function as part of the roof itself.
CHOOSE YOUR ROOF PROFILE & STYLE
SHINGLE TILE & WOODTILE
CHOOSE YOUR ROOF PROFILE

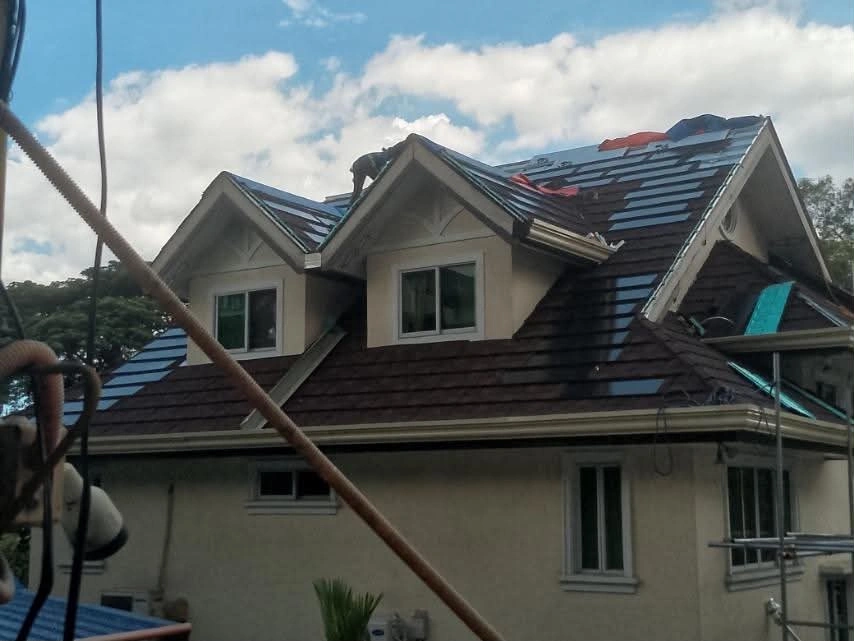

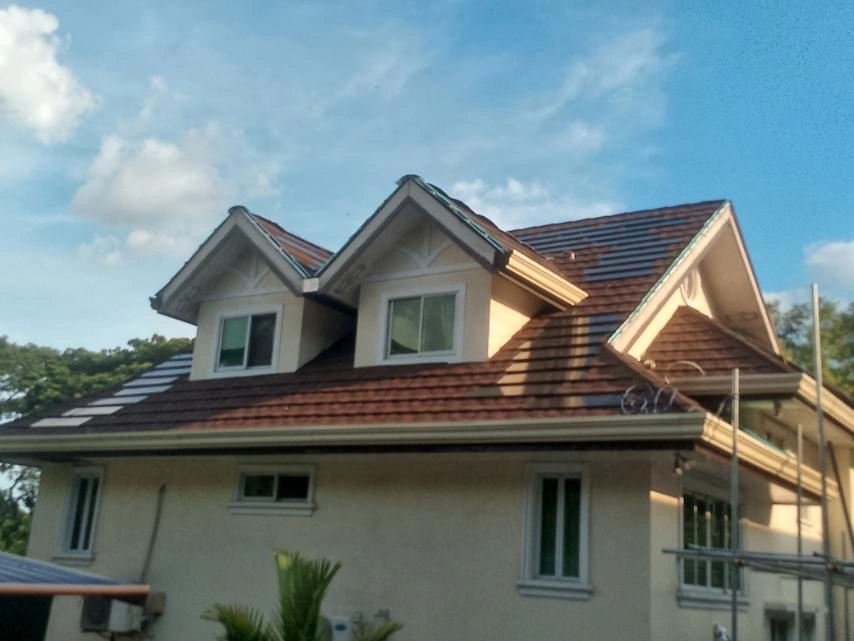

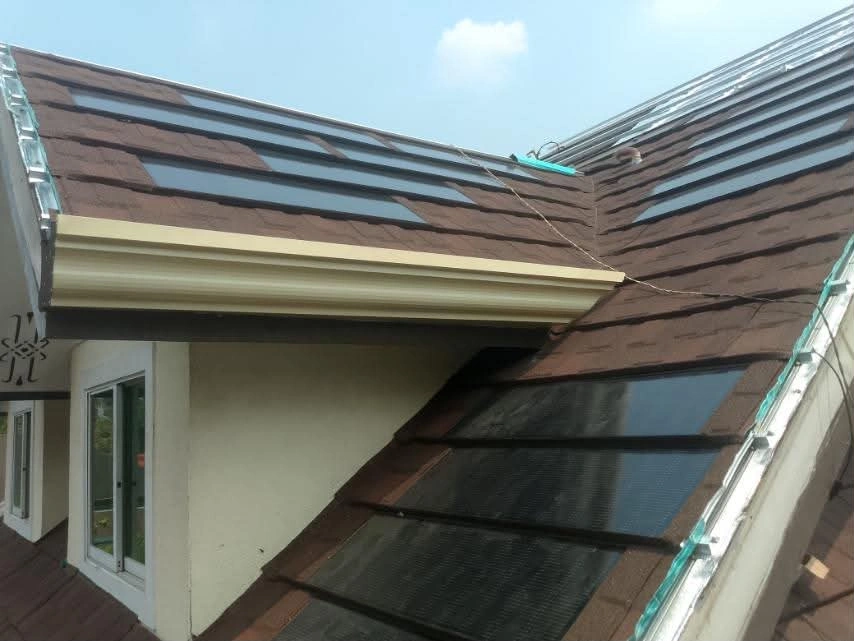

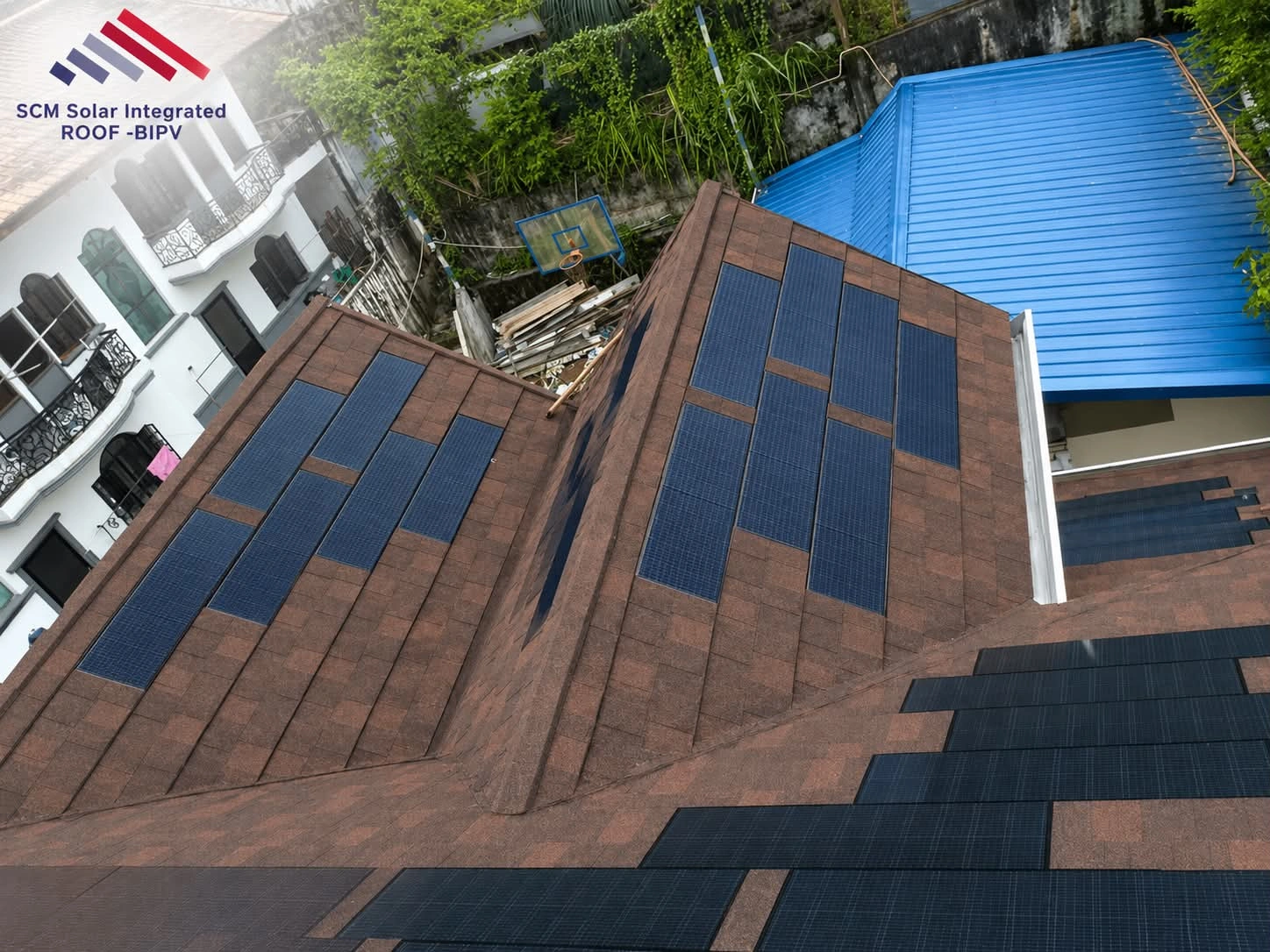

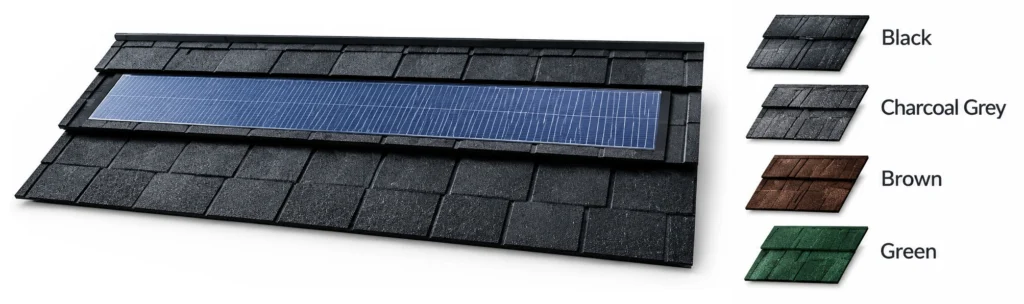

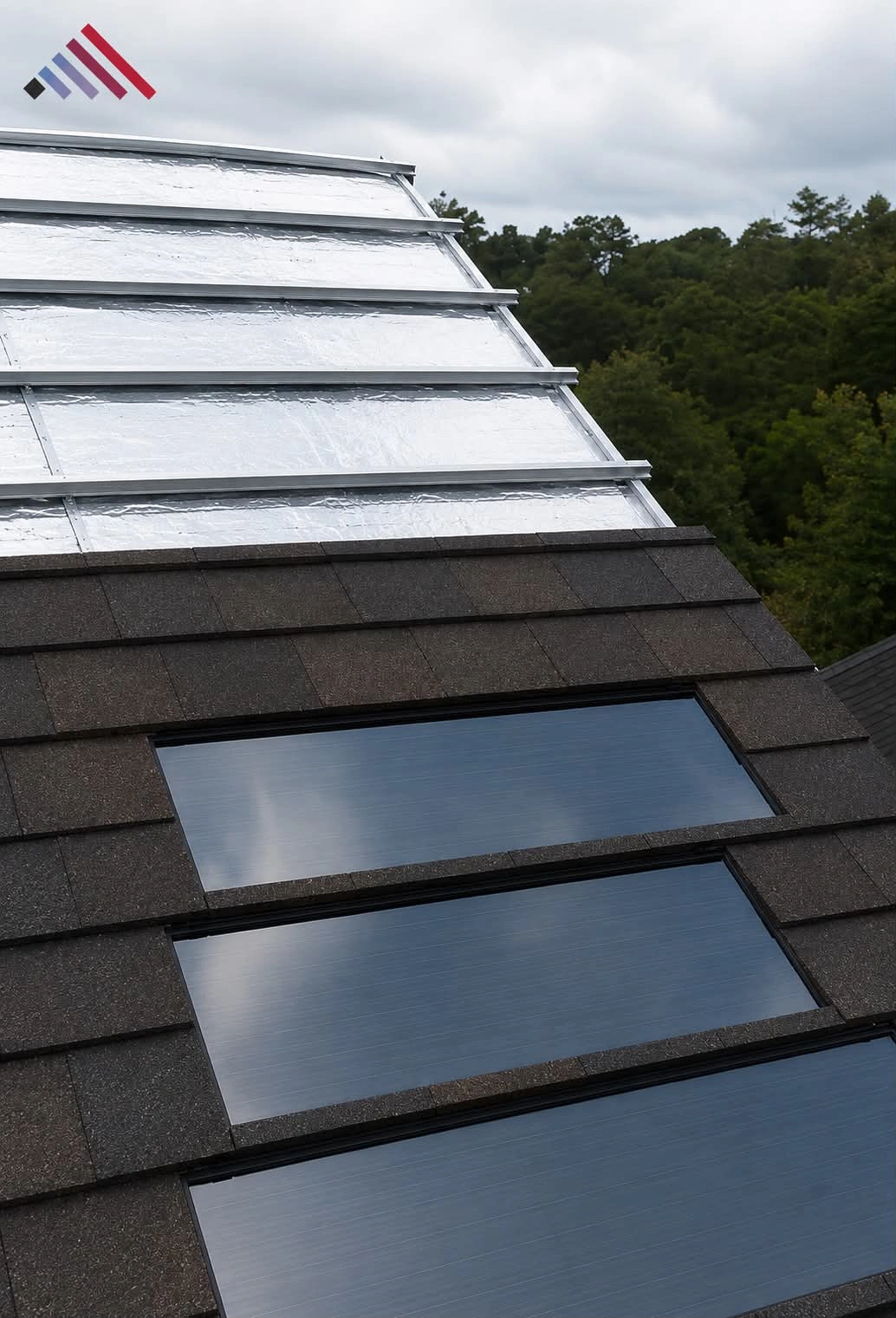

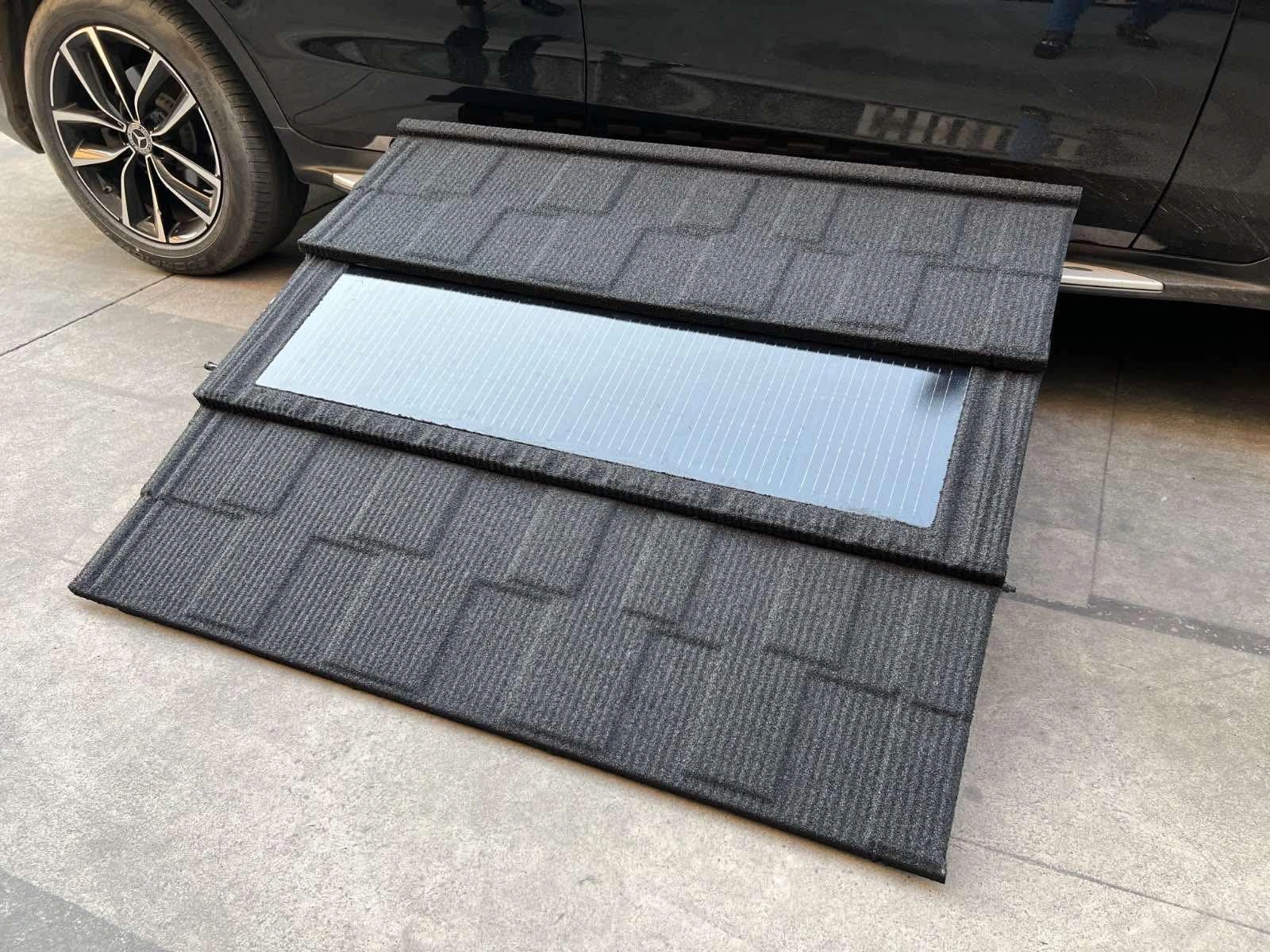

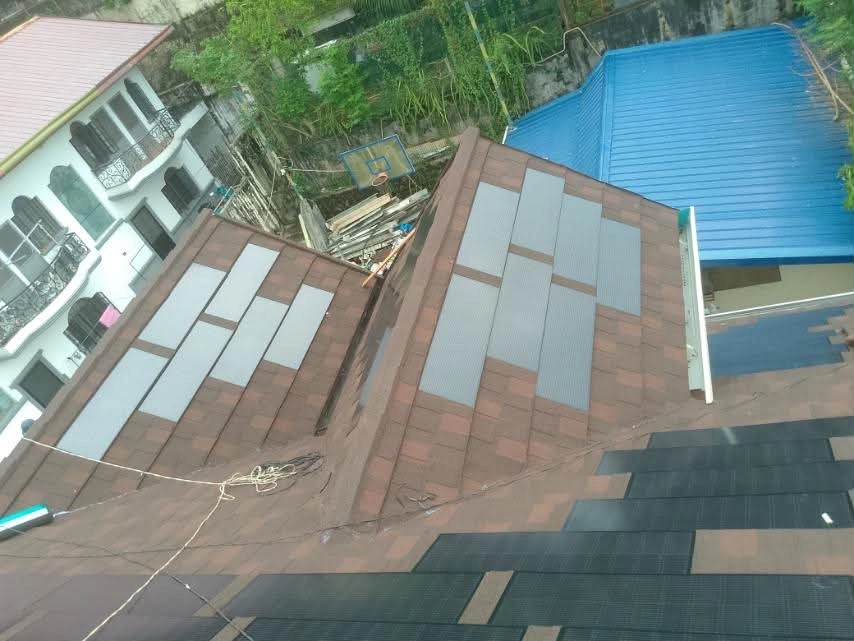

Shingle Tile Design
Classic architectural shingle appearance with integrated solar capability.

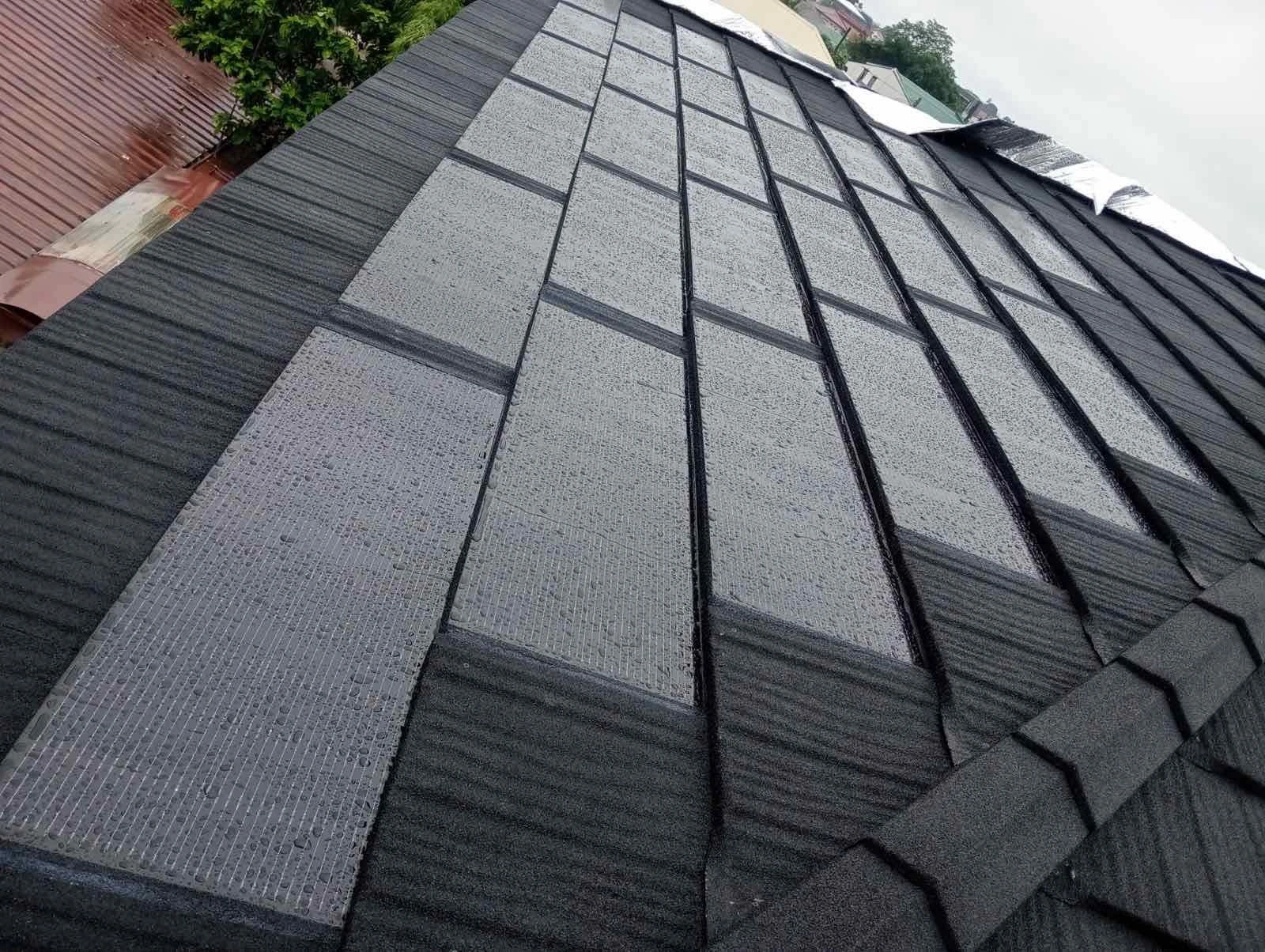

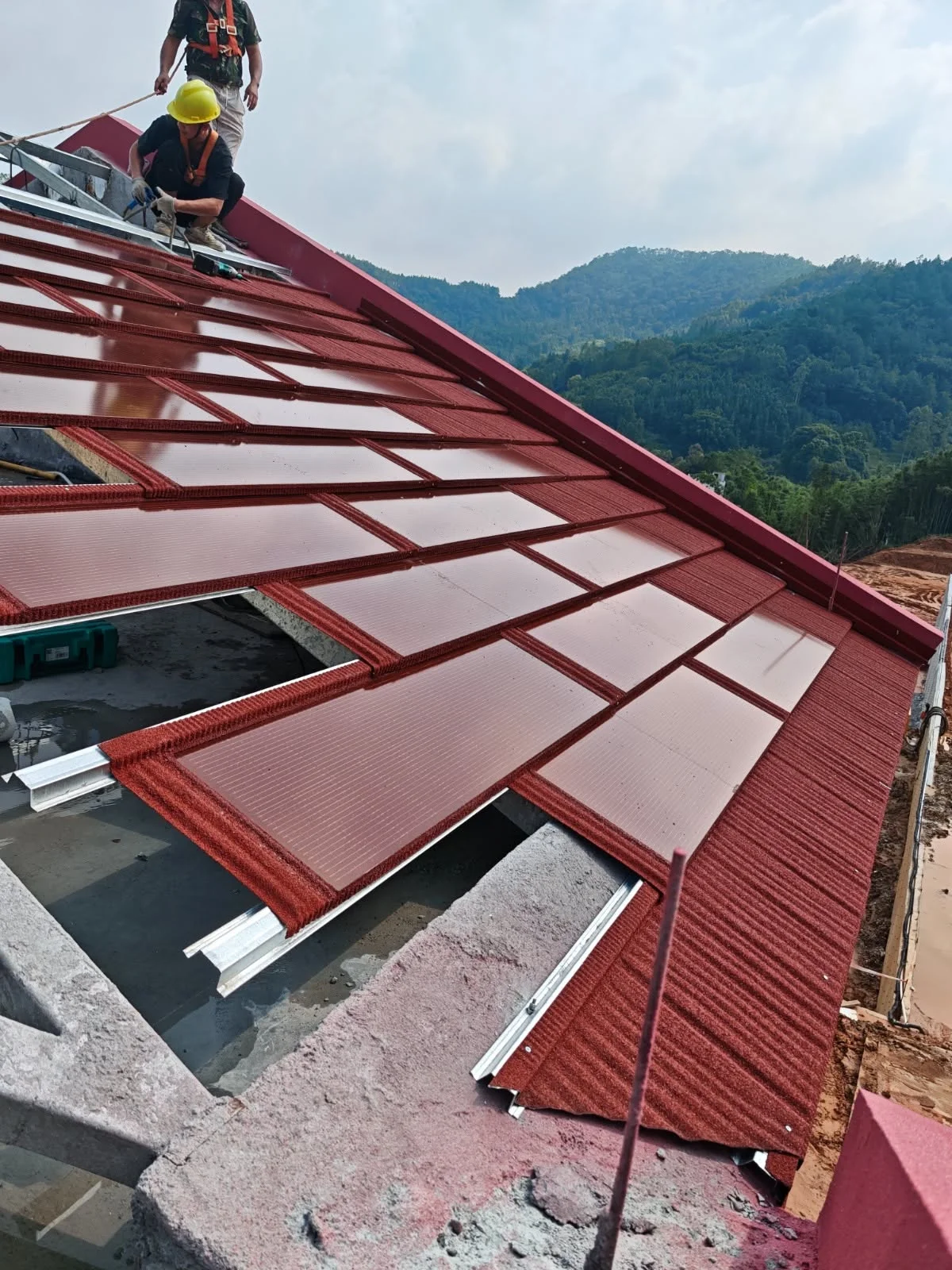

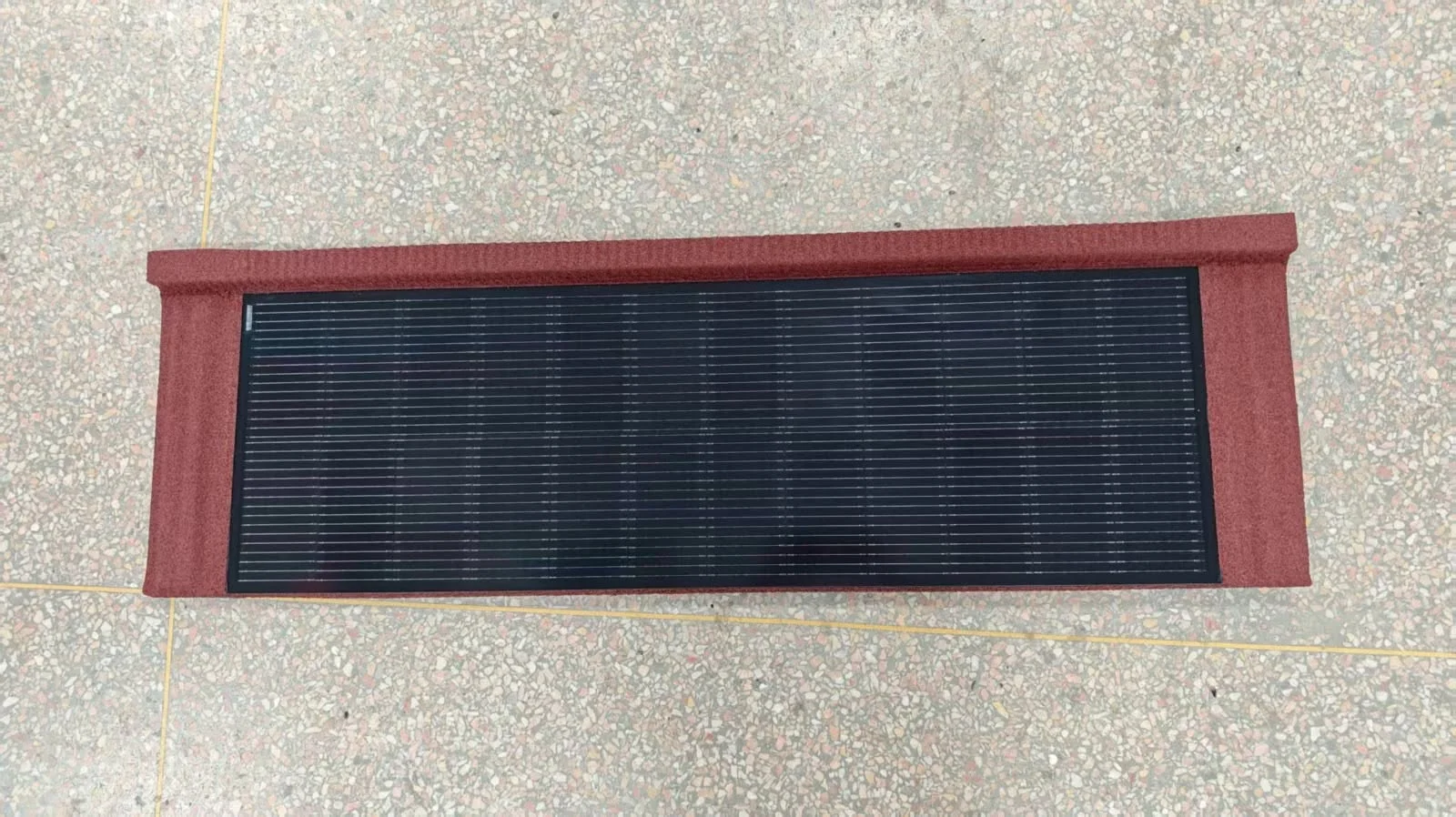

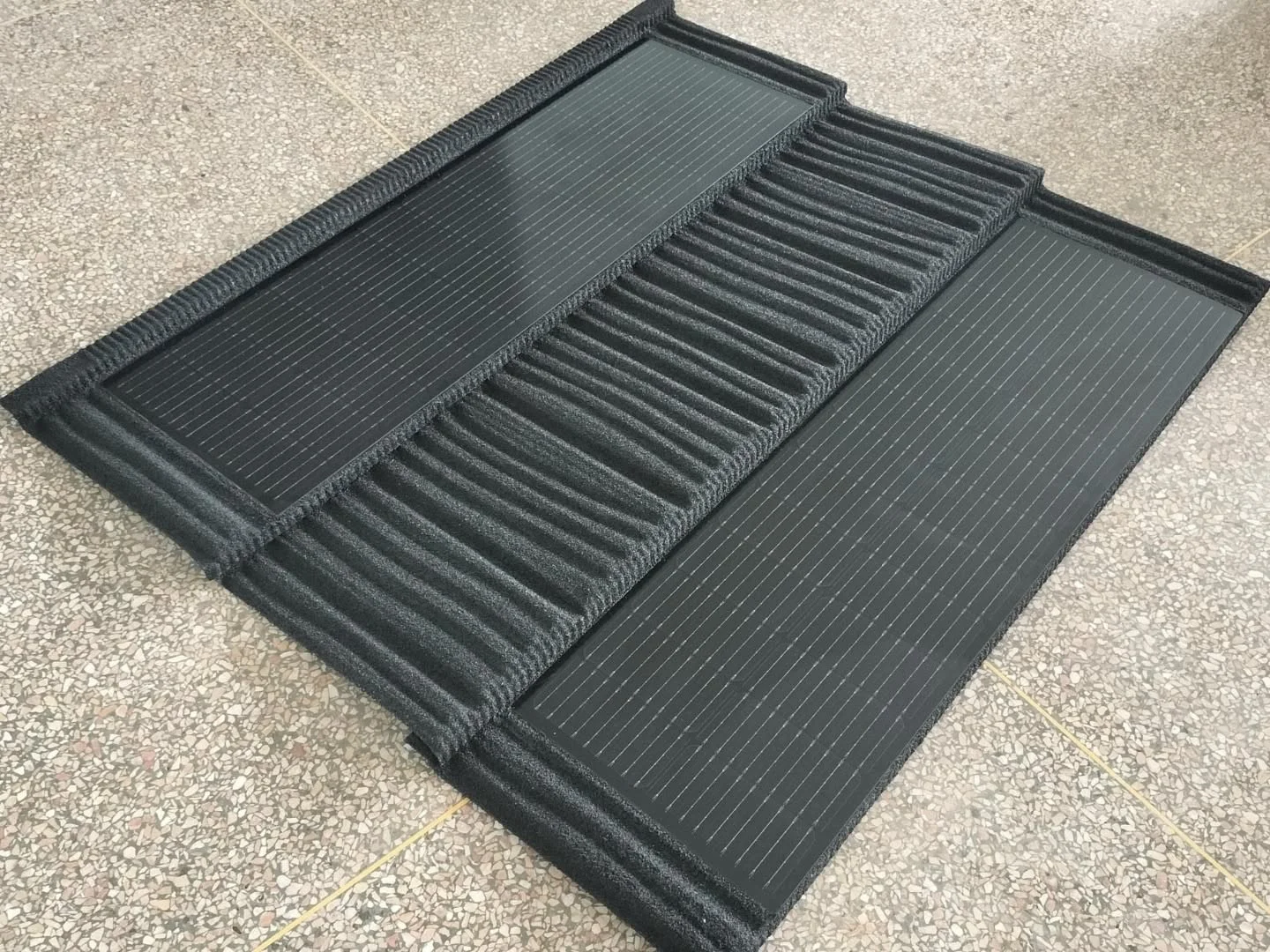

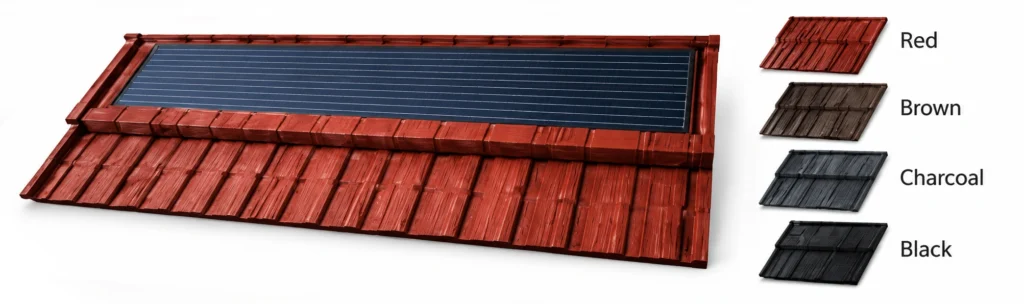

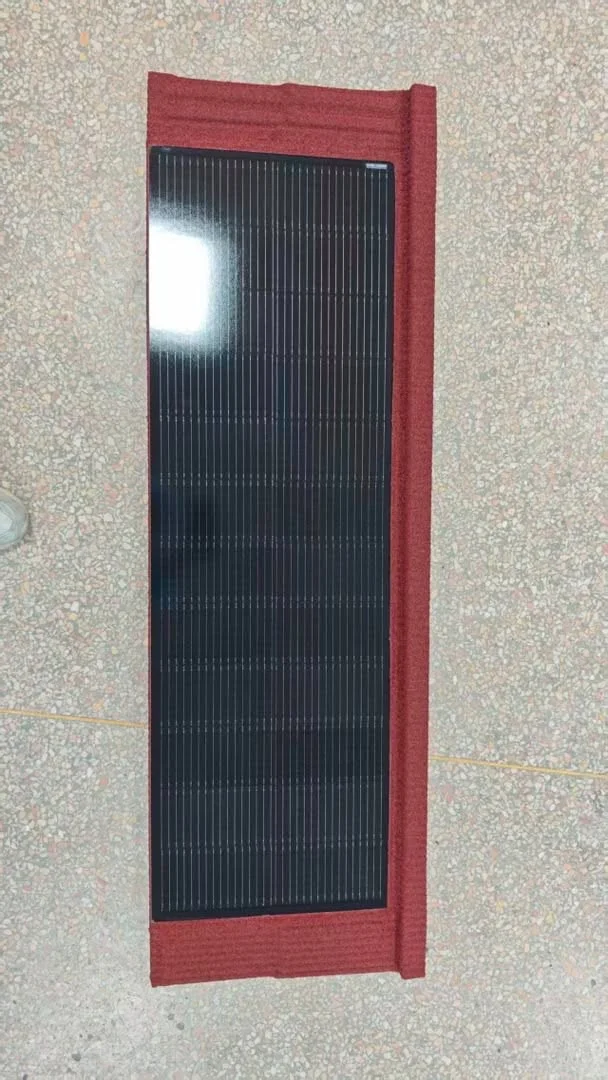

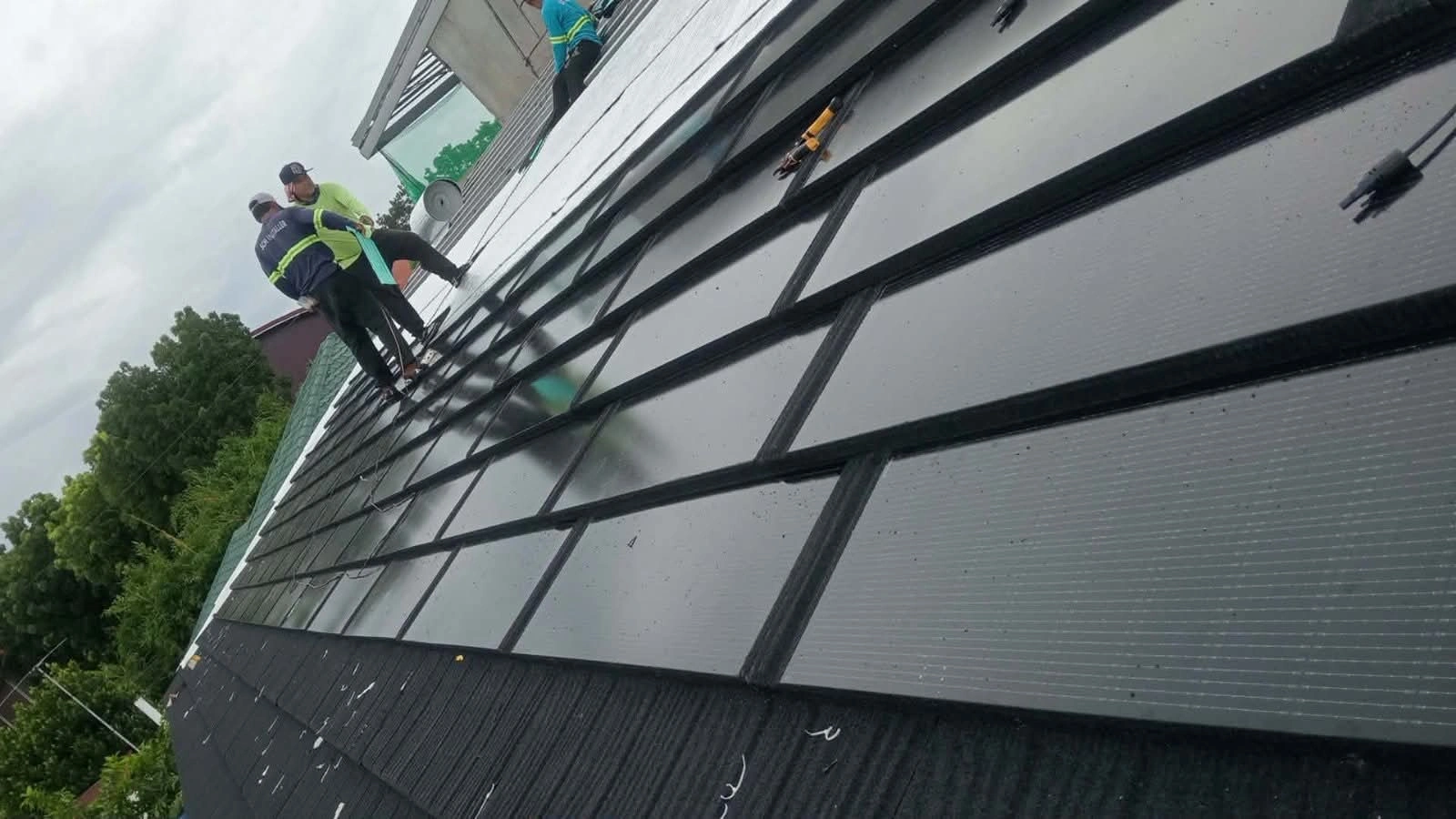

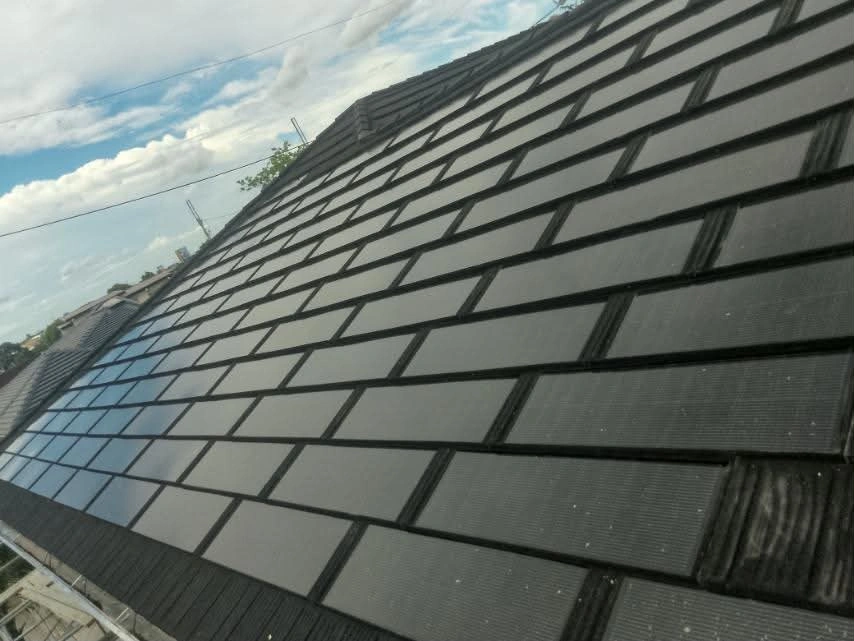

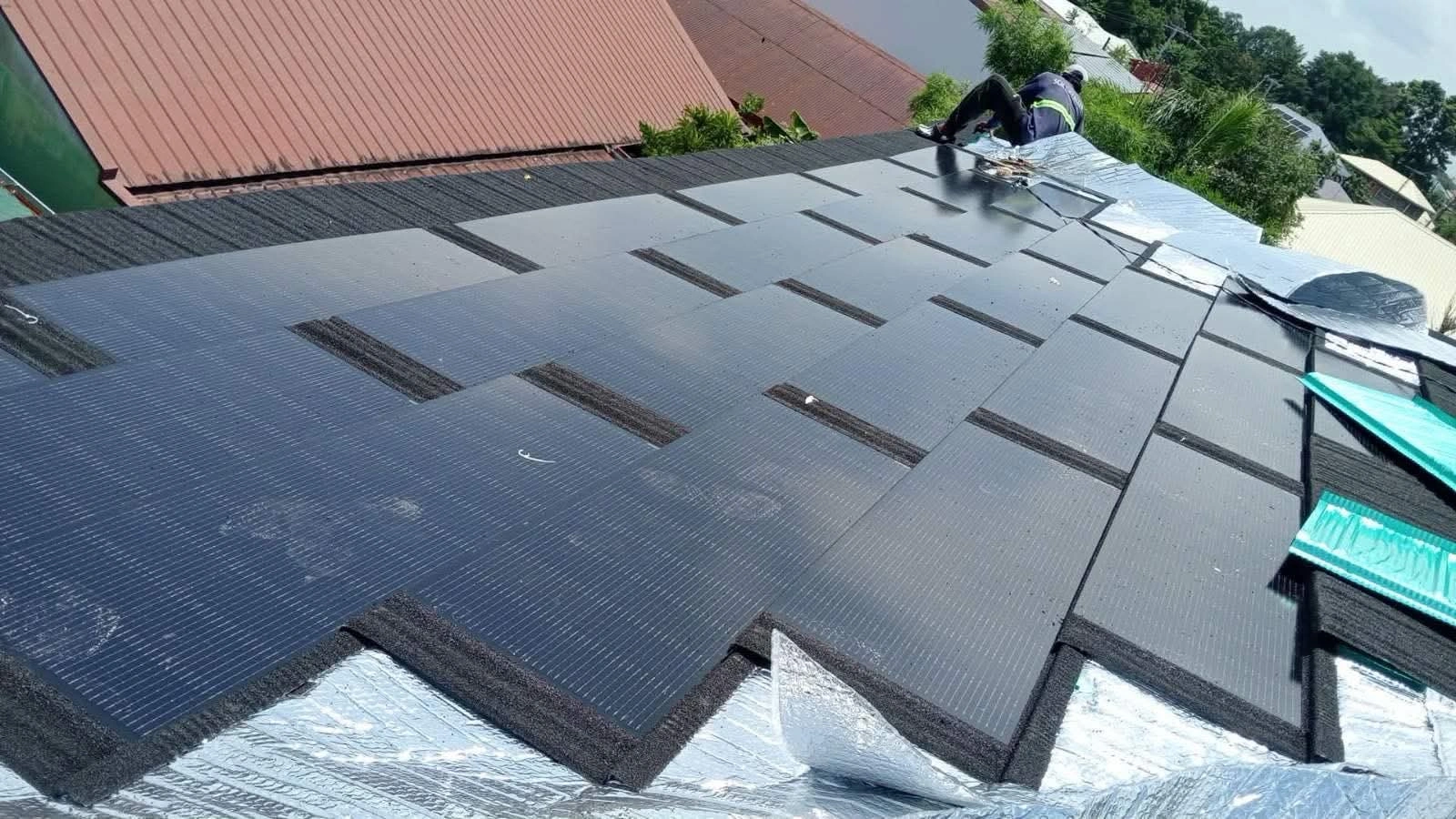

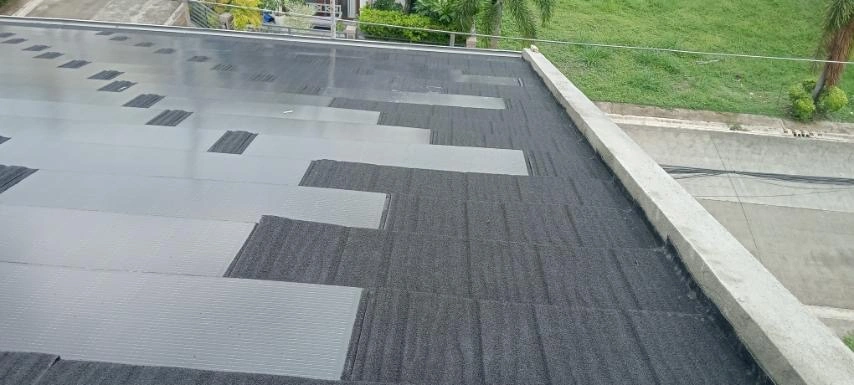

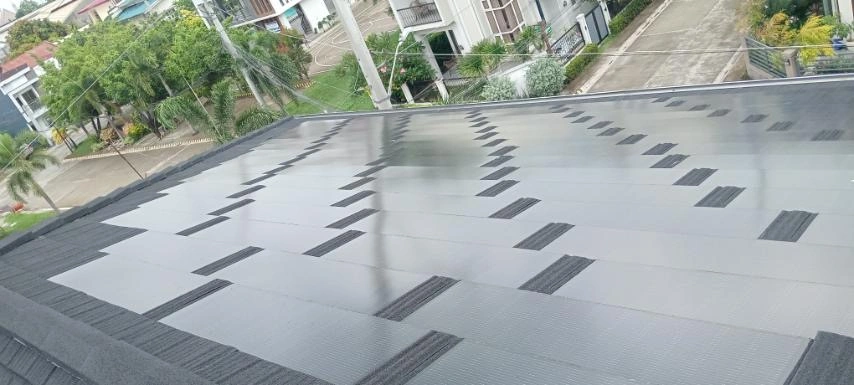

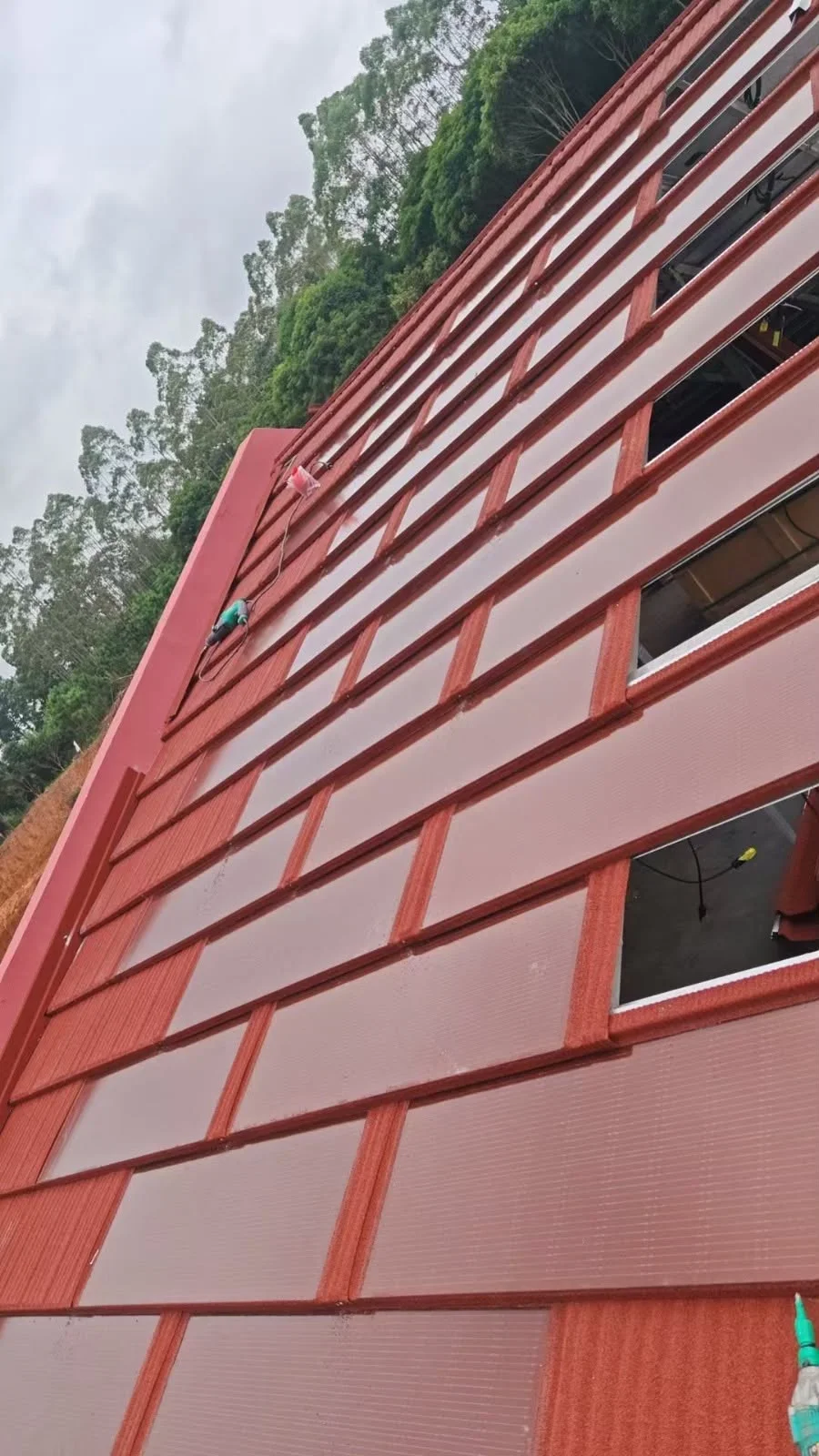

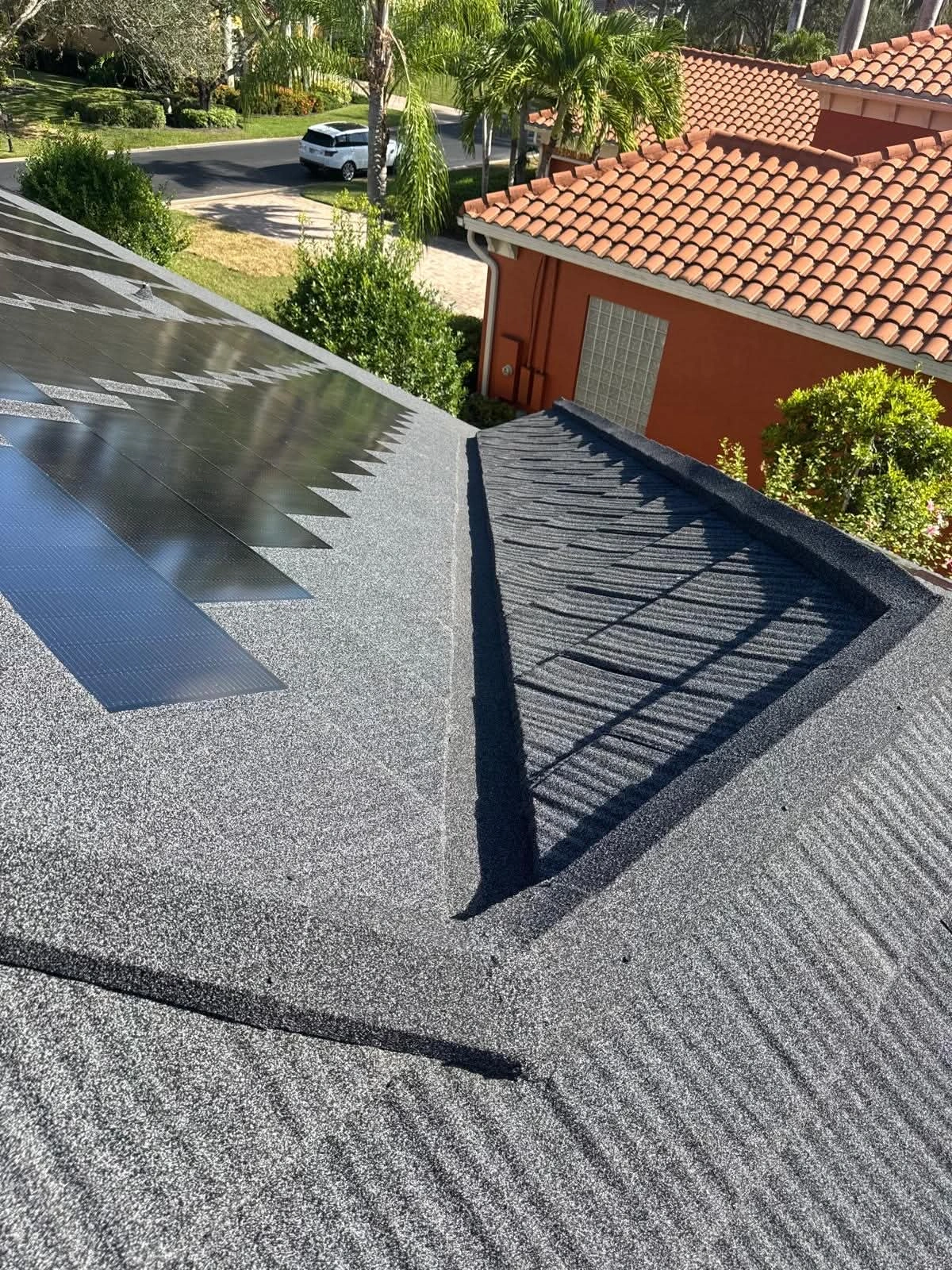

Wood Tile Design
Distinctive wood-inspired roofing profile with integrated solar capability.
Features
WHY BIPV INSTEAD OF CONVENTIONAL SOLAR PANELS?
Why don’t I just put ordinary solar panels on my roof?
SCM Solar Integrated Roof – BIPV
- Solar is built directly into the roofing system.
- Sleek, low-profile design that blends with the roof.
- Roofing and solar are installed as one integrated system.
- Designed to function as part of the roof assembly.
- Uses an integrated, low-profile mounting solution.
- Integrated components simplify system servicing.
- Individual components can be serviced or replaced as needed.
- Designed for long-term performance as an integrated roof system.
- Higher upfront investment for an integrated roof-and-solar solution.
- Ideal for new construction and roof replacement projects.
Conventional Roof-Mounted Solar
- Solar panels are mounted on top of the existing roof.
- Raised panels create a more noticeable rooftop appearance.
- Solar is installed separately from the roofing system.
- Adds additional load and mounting components to the roof.
- Requires rails, brackets, clamps, and other hardware.
- Roofing and solar systems are maintained separately.
- Solar panels and roofing components are replaced separately.
- Lifespan depends on the individual roof and solar components.
- Typically lower upfront solar cost when using an existing roof.
- Well suited for solar retrofits on existing roofs.
Technical Specifications
Built for Performance. Designed for Durability.
Engineered to deliver reliable solar performance while seamlessly integrating into modern roofing systems. Explore the electrical, physical, and safety specifications that make SCM Solar a durable solution for long-term energy generation.
- Power Output (Pmax)
80W
- Module Efficiency
19.4%
- Voltage at Pmax (Vmp)
15.10V
- Current at Pmax (Imp)
5.30A
- Open Circuit Voltage (Voc)
18.20V
- Short Circuit Current (Isc)
5.61A
- Solar Cell Type
Monocrystalline
- Solar Cell Size
166 × 83 mm (2 × 13)
- Dimensions
1340 × 420 mm
- Effective Size
1260 × 370 mm
- Weight
6.5 kg
- Glass (Material / Thickness)
3.2 mm — Low-Iron Tempered Glass
- Backsheet
Yes
- Junction Box Protection
≥ IP67
- Cable Type
900 mm / 4 mm²
- Product Color
Black / Red (Woodtile)
- Connector Type
MC4
- Max. System Voltage
1500V DC
- Max. Series Fuse Rating
16A
- Operating Temperature
40°C to +85°C
- Max. Static Load (Front)
5400 Pa (e.g. snow load)
- Max. Static Load (Back)
2400 Pa (e.g. wind load)
- Hailstone Impact
25 mm / 23 m/s
- Fire Rating
Class A
- Product Life
30+ Years
sYSTEM dIAGRAM
HOW DOES IT WORK?
During daylight hours, the integrated solar modules generate DC electricity. The inverter converts the electricity into usable AC power for the property. With a compatible hybrid system, battery storage can also be added for energy storage and backup.
01
SUNLIGHT
Natural sunlight provides the energy needed to generate solar power.
02
SCM SOLAR INTEGRATED ROOF
SCM SOLAR INTEGRATED ROOF
Solar-integrated roofing captures sunlight and converts it into electrical energy.
03
HYBRID INVERTER
Converts DC electricity into usable AC power for your home or business.
04
HOME / BUSINESS LOADS
The electricity powers your lights, appliances, equipment, and other electrical needs.
FAQ
Frequently Asked Questions
Have Questions?
What is BIPV roofing?
BIPV (Building Integrated Photovoltaics) roofing is a system where solar power generation is built directly into the roofing material itself, rather than mounting separate solar panels on top of an existing roof. The SCM Solar Integrated Roof combines Stone Coated Metal AlumZinc roofing with integrated solar tempered glass in a single, seamless product.
What is the difference between BIPV and BAPV roofing?
BIPV makes the solar layer part of the roof itself, with no extra roof penetrations and a flush, low-profile look. BAPV (Building Attached Photovoltaics) is the conventional setup where solar panels are bolted onto racks mounted above an existing roof, requiring additional penetrations and a raised, bulkier appearance.
Is BIPV roofing available in the Philippines?
Yes. SCM Roofing Inc. offers the SCM Solar Integrated Roof (BIPV) nationwide in the Philippines, available in Shingle Tile and Woodshake (Wood Tile) profiles, with installation and free site inspection.
What profiles are available for the SCM Solar Integrated Roof BIPV?
The BIPV solar tempered glass is currently available in two profiles: Shingle Tile and Woodshake (Wood Tile). Other Stone Coated Metal profiles, such as Roman tile, are not compatible with BIPV integration.
How much does the SCM Solar Integrated Roof BIPV cost?
Pricing depends on roof size, layout, and the number of solar tiles needed. We offer a free on-site inspection and quotation with no obligation — contact us to schedule one.
Does the BIPV roof come with a warranty?
Yes, the SCM Solar Integrated Roof BIPV carries a 30-year expected product life and manufacturer warranty. Full warranty terms are provided during your free inspection and quotation.
How long does BIPV roof installation take?
Installation time depends on roof size and layout. Since BIPV installation involves both roofing and solar integration, it typically takes longer than a standard roofing job — our team will give you an exact timeline during the site inspection.
Is the SCM Solar Integrated Roof BIPV durable in Philippine weather?
Yes. The base material is Stone Coated Metal AlumZinc, rated for typhoon and weather resistance, hailstone impact, and Class A fire resistance, on top of the solar tempered glass layer’s own weatherproofing.
Where does SCM Roofing Inc. offer BIPV installation?
We service nationwide across the Philippines, with branches in Quezon City and Imus, Cavite. Contact us to confirm service and delivery to your specific area.
How do I get started with a BIPV roofing project?
Contact us via Viber (0917 706 2924 / 0917 110 5517) or through our website to schedule a free site inspection. Our team will assess your roof and provide a customized quotation for your SCM Solar Integrated Roof BIPV project.
